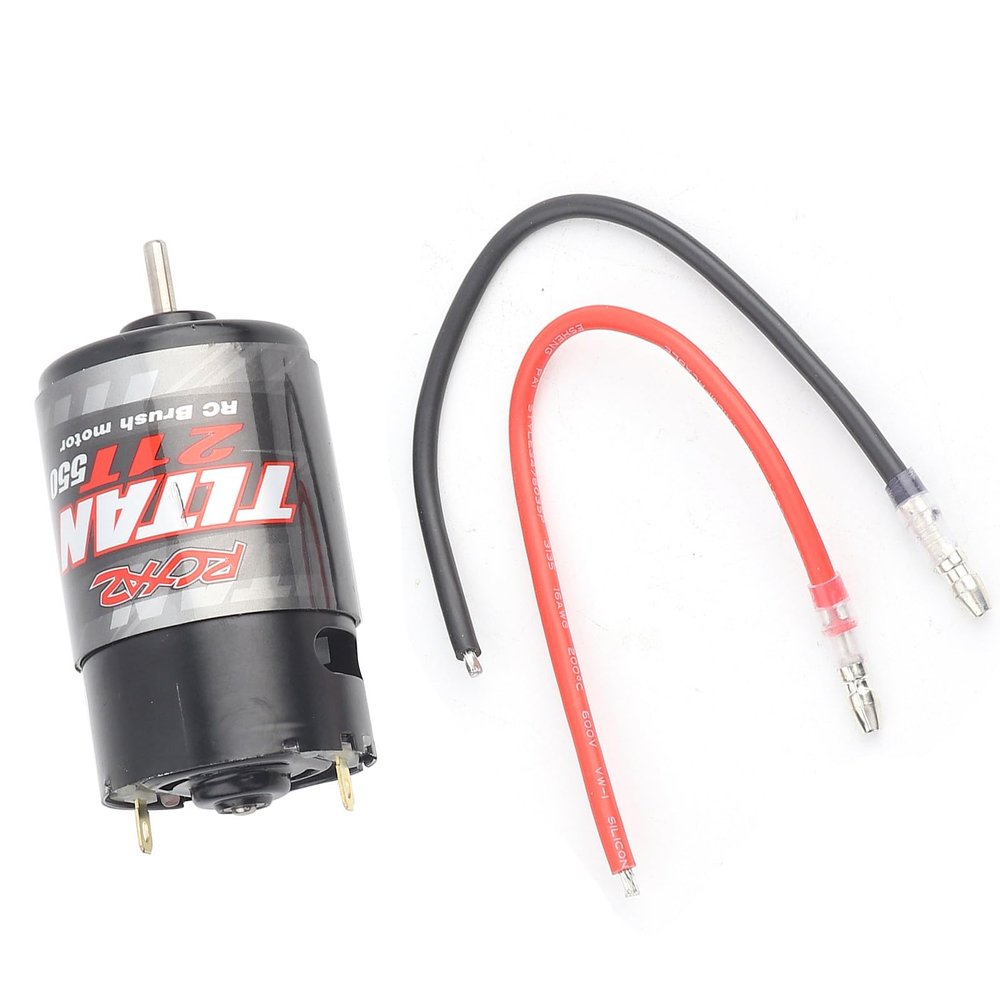

RiToEasysports 550 Brushed Engine High Long Term Engine for 6 RC Car Model, Precision RC Brushed for 12T, 21T, 29T, 35T, Black, 1 Pack (21T)

Description

• [Energy -efficient] only requires a current of 3.8a for operation, which offers an output power of 46 W with 76.1% efficiency.
• [Low deception design] Oil-containing sleeve-containing sleeve and built-in cooling fan reduce the noise levels for a quieter RC automotive operation.
• [Smooth operation] Fine linearity in the ordinary 3-winding rotor motor ensures smooth and precise performance.
• [Overload protection] Degaussing case outside the cooling fan offers protection against rotor blockade and overheating.
• [Suitable for 35T ] specially designed for the fulfillment of the requirements of 35T applications and offers reliability and efficiency.

1. Standard specification 550 High and low noise brushed engine for RC car and boat.
2. The front part is a ball bearing with high precision and long service life; Extended oil bearing wave in the tail, low noise and service life of the long service life.
3. From extended oil -striving sleeves on the tail, low noise, built -in cooling fan with degaussing cover outside.
4. Internal rotor assumes a multi grinding winding with strong and power at low speed. The ordinary 3 -wind redorer motor has a finer linearity.
5. There are 4 different types available, you can choose according to your requirements.

Technical dataification:
Condition: brand new
Article type: brushed engine
Material: metal
Optional type: 12T, 21T, 29T, 35T
Size: 550
Color: black
Axis diameter: D axis 3,175 mm
Output wavelength: approx. 15 mm / 0.6 inches
Outside diameter: approx. 36 mm / 1.4in
Body length: approx. 60 mm / 2.4 inches
Distance of the assembly hole: approx. 25mm / 1in
Screw hole: approx. 3 mm / 0.1in
Equipment:
Fit for 4 standard car model
Fit for 6 series car model
12t
No load maximum efficiency of maximum output power rotor blocked
Electricity (a) 3 14.4 36.2 70
Efficiency (%) 73 51
Output power (w) 78 137
Speed 22500 18600 112500
(G.CM) 410 1190 2370
Tensions (V) 7.4 V
Temperature -10-50 21T
No load maximum efficiency of maximum output power rotor blocked
Electricity (a) 1 7 24.7 48.3
Efficiency (%) 77 49.5
Output power (w) 40 91
Speed 12900 11300 6450
(G.CM) 350 1370 2730
Tensions (V) 7.4 V
Temperature 10-50 29t
No load maximum efficiency of maximum output power rotor blocked
Electricity (A) 1 6.3 20 39.1
Efficiency (%) 72.8 47.8
Output power (W) 34 71
Speed 10500 9050 5250
(G.CM) 370 1320 2630
Tensions (V) 7.4 V
Temperature 10-50 35T
No load maximum efficiency of maximum output power rotor blocked
Electricity (A) 0.6 3.8 12.5 24.3
Efficiency (%) 76.1 49.7
Output power (w) 22 46
Speed 7900 6830 3950
(G.CM) 310 1130 2260
Tensions (V) 7.4 V
Temperature -10-50

Packfelist:
1 x brushed engine

Observe:
1. Please allow 1-3 mm errors due to the manual measurement. Thank you for your understanding.
2. Monitors are not calibrated. The color displayed in photos may differ easily from the real object. Please take the real standard.
3. Product wire without welding, lively proof, cannot soak in water.
4. Please note that the new type and the old type of this product are sent randomly, and sure that it does not matter before ordering.
