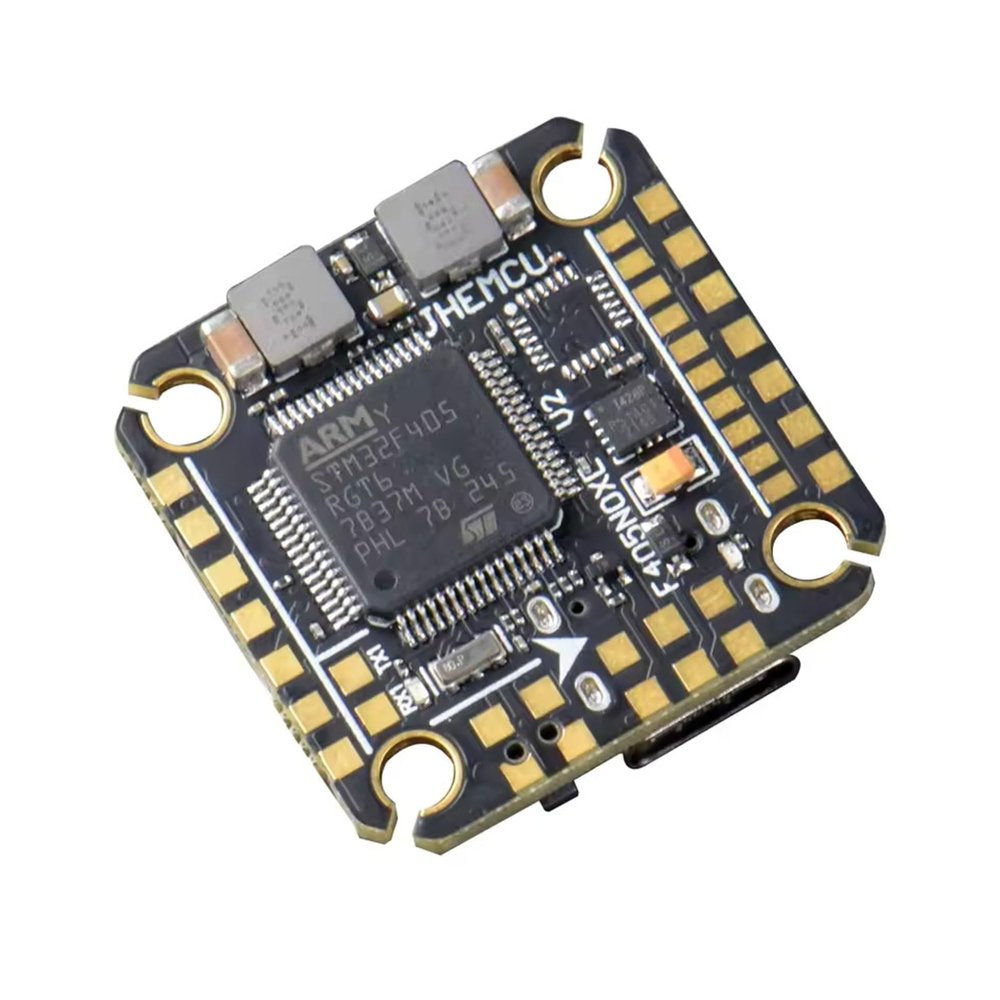

JHMECU Noxe V2 F405 Flight Controller Baro Blackbox OSD Compass

Description

• Advanced Features: The JHEMCU F405 NOXE V2 features an STM32F405 MCU with 168MHz processing power, an ICM-42688-P IMU for precise gyro/accel control, and an AT7456E OSD chip for on-screen display, ensuring enhanced flight control and real-time data visibility. It also includes a barometer for altitude data.
• Dual BEC for Reliable Power: Equipped with both 5V/2.5A and 10V/2A BECs, this flight controller supports a wide range of components while ensuring stable and efficient power delivery. It also features a 16MB blackbox for comprehensive flight data logging, making it perfect for tuning and troubleshooting.
• Compact and Versatile Connectivity: Designed for FPV freestyle drones, it supports 3S-6S Lipo input voltage and comes with multiple connectivity options, including ELRS, TBS, SBUS, IBUS, DSM2, DSMX receivers, and GPS. The micro USB port, current and voltage sensors, and DFU button provide ease of setup and maintenance, while support for LED strips and a buzzer adds customization possibilities.

JHEMCU F405 NOXE V2 Flight Controller Baro OSD 16MB BlackBox 5V 10V Dual BEC 20X20mm 3-6S LIPO for FPV Freestyle Drone DIY Parts Specifications MCU: STM32F405/168MHZ IMU: ICM-42688-P/Gyro/Accel OSD: AT7456E Baro: YES Blackbox: 16MB Input Voltage: 3S-6S(11.5V-26V) 5V-BEC: 5V/2.5A 0.1V 10V-BEC: 10V/2A 0.1V Receiver: ELRS(CRSF), TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX GPS Compatible: YES Compass: YES HD O3: YES USART: UART1,UART3,UART4,UART6 IIC: IIC1 Led_Strip: YES Buzzer: 5V ESC Signal: Dshot150,Dshot300,Dshot600 USB: Micro USB Current Port: YES Voltage sensor: YES DFU button: YES FC Firmware: betaflight_4.4.2 JHEF405PRO.HEX Size: 27x27mm Mounting Hole: 20x20 M3 Weight: 4.6g Package Contents: 1x JHEMCU F405 NOXE V2 Flight Controller 4x M2 Shock Absorbers 1x Cable 8Px1.0MM
