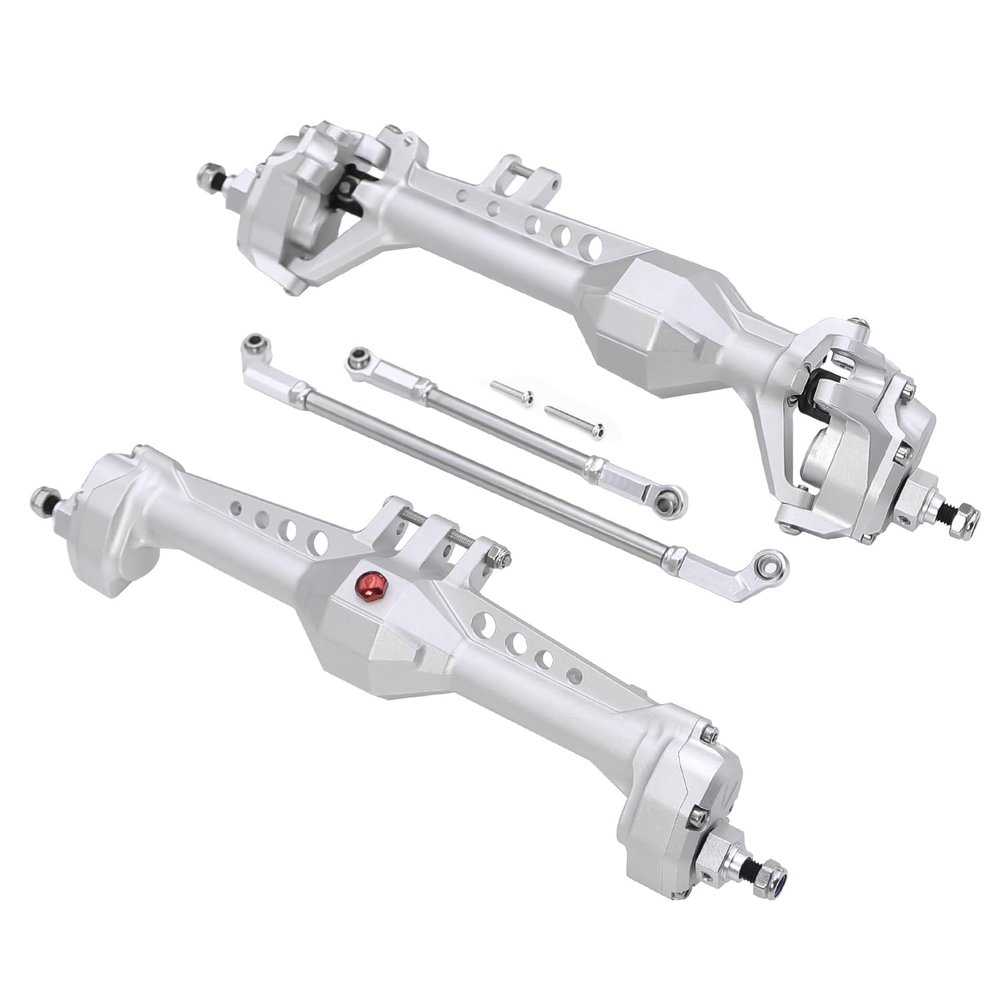

Aluminum Front and Rear Portal Axle Complete Set for 1/10 RC Crawler Vanquish VS4-10 Phoenix F10 Chassis DIY Upgrade Parts (Silver Front Rear)

Description

• The axle made of high-quality aluminum material, CNC machined for precision, Black Silver anodized, improves the overall performance
• Machined hard steel Portal Gears(28T/20T),High-Pinion Hypoid Machined Axle Gears (30T/8T),stainless steels Construction Driveshafts
• Up to 49 Degrees of Steering,High Caster reinforced C-Hub, One-Piece Molded Bearing Retainers
• Adjustable Lower Shock Mounting Position (S8E Offset Pivot Ball), 2 Upper link mount tuning positions
• Suit for 1/10 RC Crawler Vanquish VS4-10 Phoenix F10, Compatible with brass counterweights sold in our store,Optional replacement brass counterweights,increase the lower body's weight and improve stability

Material: Aluminumalloy(Axle housing,Steeringtierod,Adapters)+Stainless steels(Driveshafts)+Hard steel(Gear)
Color: Black/Silver
Weight: 319.2g/11.26oz(Front Axle),236.5g/8.34oz(Rear Axle)
Total Width: 220mm/8.66in(Front Axle),215mm/8.46in(Rear Axle)
Pin to Pin: 195mm/7.67in(Front Axle),192mm/7.56in(Rear Axle)
5mm Output shafts with M5 wheel nut
12mm Standard Hex
Hex thick: 5mm
Steering angle: approximately 49
Bevel Gear Set: 30T/8T
Portal Gear Set: 28T/20T
Portal Gear Ratio: 1.4:1
Fit For 1/10 RC Crawler Vanquish VS4-10 Phoenix F10
