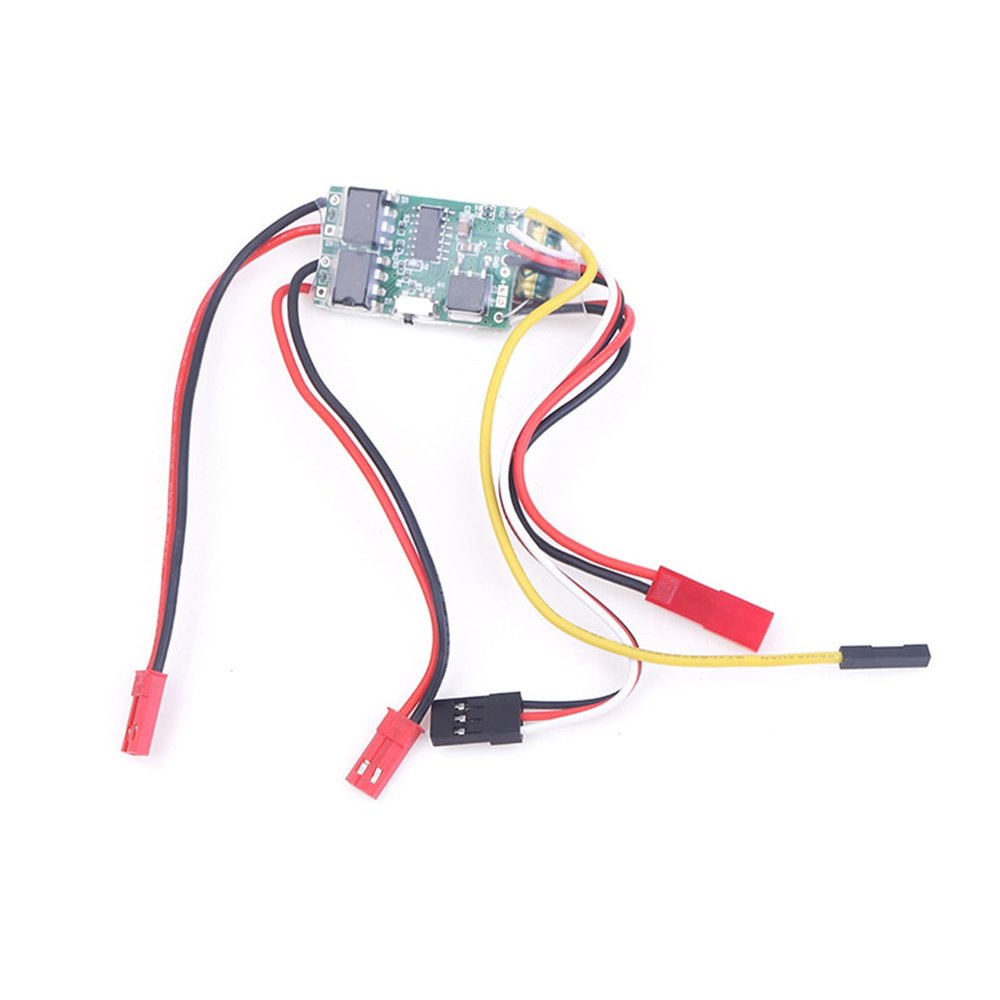

6V-14V RC Bidirectional ESC Brushed Motor Speed Controller with Throttle Steering Mode for Tanks 4WD Cars

Description

• Dual mode dual independent: it is equivalent to two independent ESC, mixed control mode (default) and throttle/steering mode.
• Throttle/Steering mode: 2 or 3 channels (2 channels are recommended because 2 channels automatically return to the center) control the throttle, 1 channel (or 4 channels) controls the speed difference steering, throttle ratio 100%, steering ratio 100%, steering priority.
• Dual-channel synchronization: In mixed control mode, if the single yellow line is not connected, or the single yellow line is connected to the receiver "-", the two motors will be controlled synchronously by the throttle.
• With fail-safe protection (loss of signal (signal line broken in an accident), for safety and motor protection, the throttle needs to be returned to center and unlocked again.
• Power failure protection: When the power supply voltage is lower than 4V, the ESC restarts protection
• There is over current protection (but repeated over current in use may also burn.) There is overheating protection (130 degrees)

Features:
Dual mode dual independent: it is equivalent to two independent ESC, mixed control mode (default) and throttle/steering mode.
Throttle/Steering mode: 2 or 3 channels (2 channels are recommended because 2 channels automatically return to the center) control the throttle, 1 channel (or 4 channels) controls the speed difference steering, throttle ratio 100%, steering ratio 100%, steering priority. Suitable for Tanks (in this mode, gun control can play tanks), 4WD cars.
Dual-channel synchronization: In mixed control mode, if the single yellow line is not connected, or the single yellow line is connected to the receiver "-", the two motors will be controlled synchronously by the throttle.
With fail-safe protection (loss of signal (signal line broken in an accident), for safety and motor protection, the throttle needs to be returned to center and unlocked again.
Power failure protection: When the power supply voltage is lower than 4V, the ESC restarts protection
There is over current protection (but repeated over current in use may also burn.) There is overheating protection (130 degrees)

Specifications:
Support Voltage: 6V-14V
Single Current: 5A
Single Current Peak Value: 7A (for 2/3S lithium battery)

Package include:
1x ESC
