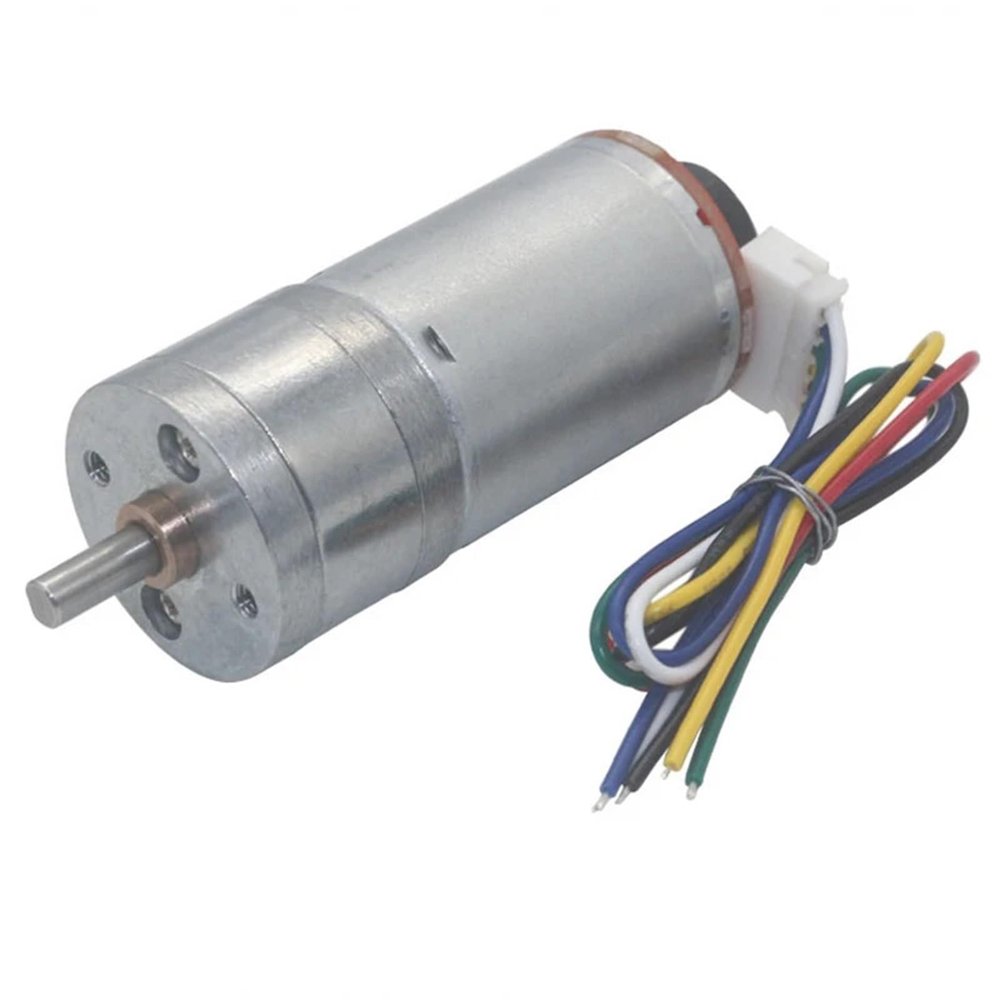

6v 12v 24v high Torque 9kg.cm Speed Electric Motor dc Gear with Encoder(16 RPM,12V)

Description

• Motor

Motor
Product size:
Wiring method:
Red Wire - positive power supply of motor(+)(change positive and negative of motor rotation will change)
White Wire - negative power supply of motor(-)(change positive and negative of motor rotation will change))
Yellow Wire - signal (motor one turn has 11 signals)
Green Wire - signal (motor one turn has 11 signals)
Blue Wire - positive of encoder power supply(+)(3.3-5V),cannot be wrong
Black Wire - negative of encoder power supply(-)(3.3-5V),cannot be wrong

<;18.65
Torque : 9.7KG.CM
Usage : BOAT,Fan,Home Appliance
Model Number : JGA25-370-encoder
Continuous Current(A) : 100ma
Construction : Permanent Magnet
Type : Gear Motor
Protect Feature : Totally Enclosed
Commutation : Brush
Output Voltage : 3w
Output Power : 3w
Model Number : JGA25-370-encoder
Continuous Current(A) : 100ma
Torque : 9.7kg.cm
Type: : Micro gear motor with encoder
Gear box diameter : 25mm
Gear : Metal
Encoder : 2 phases
