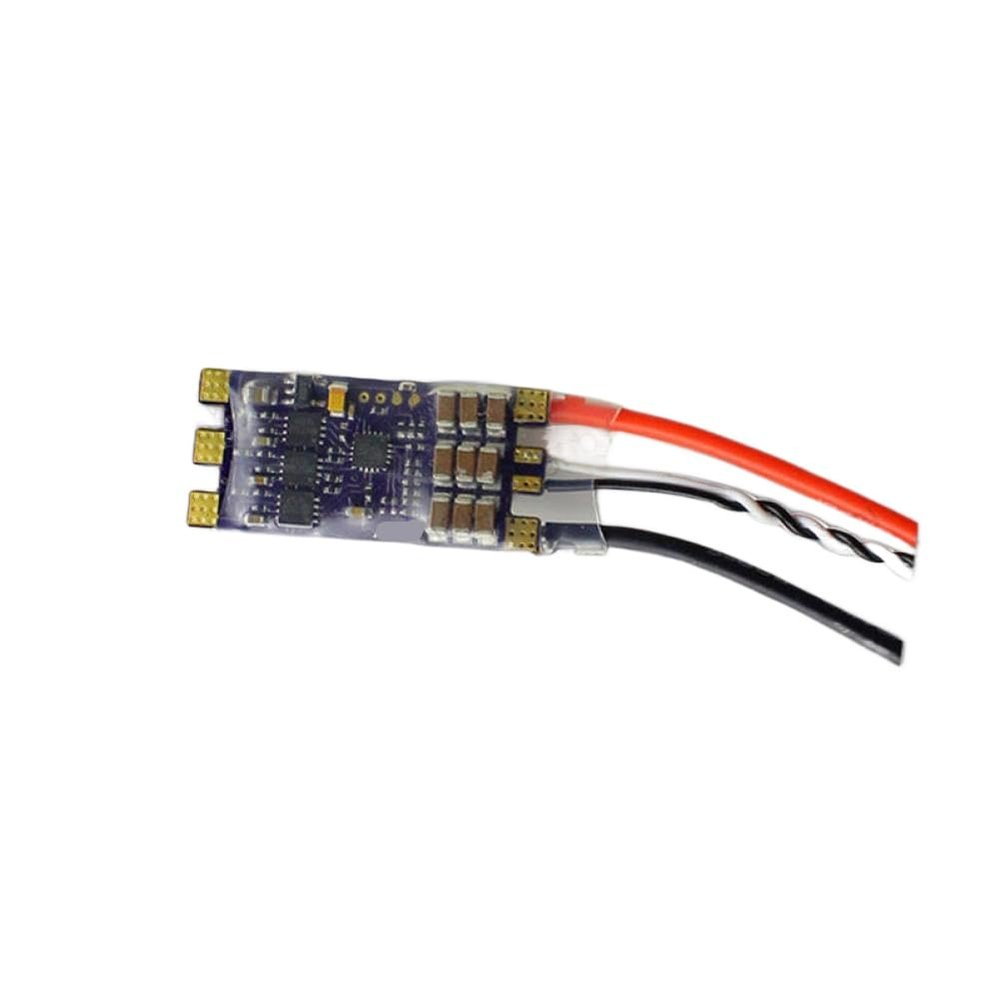

4PCS DC12-24V 3-6S 30A ESC Underwater Thruster Two-Way Brushless Speed Regulator Standard PWM Control Compatible with Drone RC Bait Boat ROV

Description

• Model compatibility with DC12-24V 3-6S power input ensures performance across a wide range of underwater and aerial applications
• Supports up to 30A continuous current for robust in environments such as ROVs, drone propulsion, and RC bait boats
• Equipped with standard PWM control for integration with common flight controllers and remote radio systems
• Bidirectional rotation function enables forward and reverse thrust control, enhancing maneuverability in underwater vehicles
• Compact and efficient brushless speed regulator design ideal for space-constrained installations in marine and RC projects

4PCS DC12-24V 3-6S 30A ESC Underwater Thruster Two-way Brushless Speed Regulator Standard PWM Control for Drone RC Bait Boat ROV This product is compatible with various types of brushless DC motors used in model aircraft, multirotor drones, ROVs, AUVs, and automated vehicles.It features overheating protection and overcurrent protection to help extend the of the device.The ESC comes pre-flashed with BLHELI-S firmware, which can be adjusted by connecting to a flight controller and using BLHELISUITE software for parameter tuning.It supports standard PWM control and can be operated via a PWM generator for forward rotation, reverse rotation, and speed adjustment.Item name: dual-way ESC Voltage: 3-6S Lipo, DC12-24V Continuous current: 30A Instantaneous current: 40A Dimensions: 3.27 x 1.62 x 0.72 cm Weight: approximately 9g per piece Power : 10cm, 2mm : 15cm, 0.75mm Waterproofing: requires potting or additional waterproof treatment Application: suitable for drone, RC bait boat, ROV, AUV, and other brushless DC motor systems Performance parameters: PWM cycle: 20000us PWM zero position: pulse width 1500us PWM dead zone: approximately 14851535us PWM maximum output position: 1150us (reverse) / 1850us (forward) Line sequence definition: Bold red: power positive Fine white: positive Bold black: power ground Fine black: ground Protection features: Overheating protection: the ESC stops when temperature reaches preset limit and resumes after cooling.Overcurrent protection: automatically cuts off power output if abnormal current is detected due to overload or short , protecting both motor and ESC.Compact size and lightweight design allow for easy installation in confined spaces.The unit efficiently converts DC input into three-phase AC output for brushless motors with minimal energy loss, improving overall power efficiency and extending runtime.Package includes: 4 x ESC
