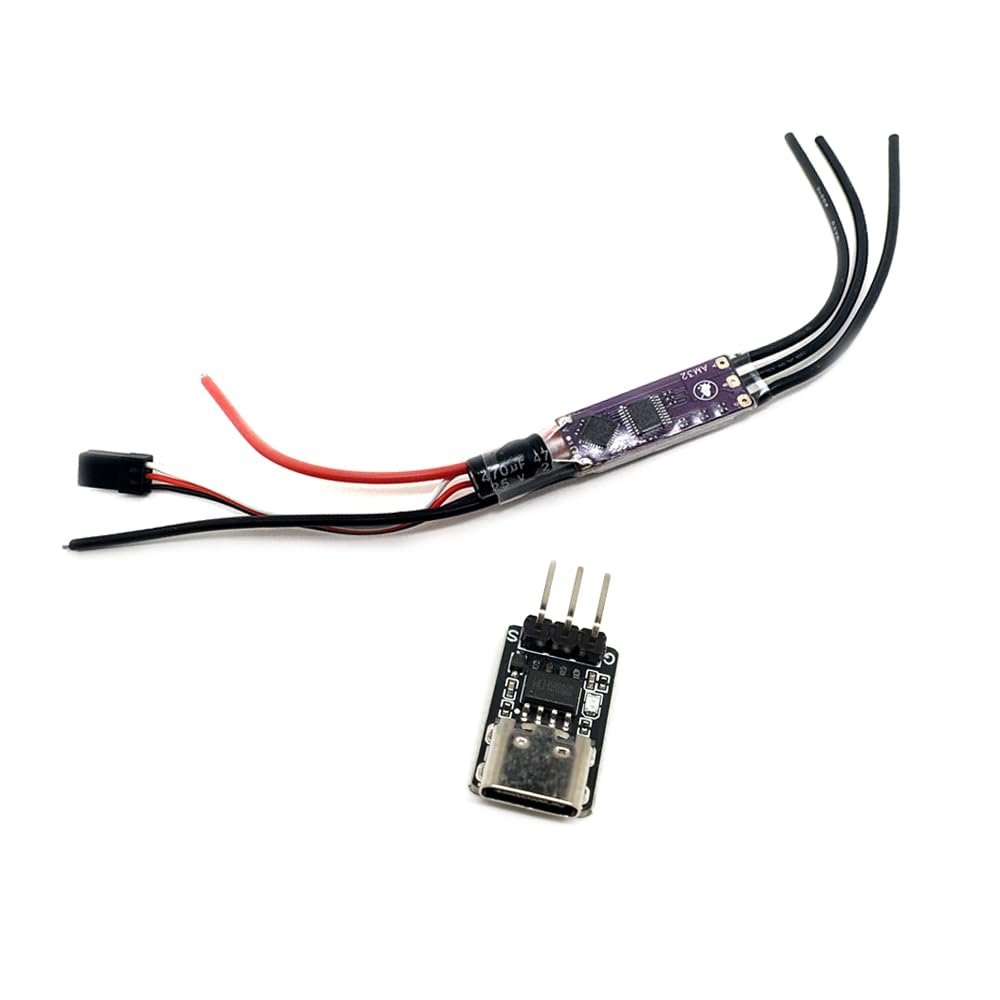

32-Bit ESC AM32 2-4S 40A Speed Controller 5V 2A BEC 25V 470uF Capacitor with ESC Param Coverter for RC Crawler Car Model Airplane Brushless Motors

Description

• A new 32-bit ESC product, with a super mini size, very suitable for compact installation, it is a driving tool for various small model airplane brushless motors
• Selected low-power MOS tube with layout placed on the same side for convenient heat dissipation and strong power
• Mini size and high power, it is the preferred power for small aircraft, crawler, climbing vehicles
• Integrates the BEC module (5V2A), adds overcurrent copper bars, adds thermal conductive silicone sheets, and takes all performance to a higher level
• Supports mainstream control signals such as DSHOT and PWM, with linear at low speeds, violent at high speeds, and smooth speed regulation. It uses AM32 open-source firmware, which can be freely adjusted. It supports bidirectional operation, adjustable drag braking, sine start, and other functions, and fast forward and reverse switching is very smooth
• With a 470uF 25V capacitor to improve its working condition
• AM32 ESC Programming Converter for AM32 open source program ESC, connects the ESC to a computer for configuration or firmware upgrade,very convenient!

Specification:
Item name: 32-bit ESC
Firmware: AM32
Master control: AT32
Working voltage: 2-4S Lipo
Max current: 40A
BEC: 5V2A
Support signal: PWM/DSHOT/Sine, etc.
Board size: 32x13mm/1.26x0.51inch
Enhanced version size: 32x12mm/1.26x0.51inch
Signal cable length: 100mm
Weight: about 13.7g

Attention! When using the AM32 ESC, it is necessary to use in conjunction with a param converter.

Parameter converter:
Working voltage: 5V
Special for AM32 32-bit ESC

Package include:
1pc x AM32 ESC
1pc x AM32 Param Converter
