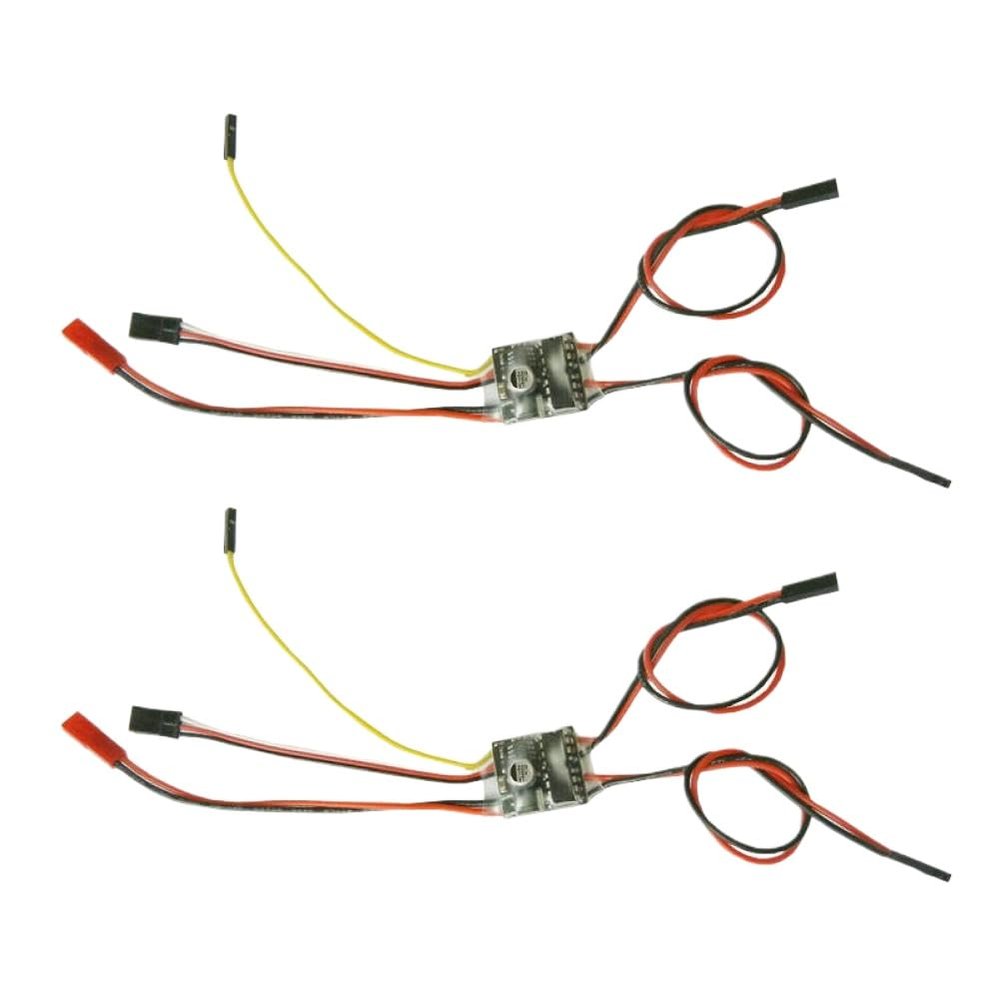

2PCS RC Model 2CH Two-Way Brushed ESC Speed Controller 2 3S 5Ax2 Bidirectional Electronic Regulator with Neutral Brake 6 14V DIY Compatible with(Mixed can be Set)

Description

• Model compatibility with 2S to 3S LiPo batteries ensures power delivery for a wide range of RC applications
• Dual-channel brushed ESC design supports two-way for enhanced control in forward and reverse directions
• Integrated neutral brake function allows smooth stopping without abrupt locking of motors
• Supports input voltage from 6V to 14V making it suitable for various 5A x 2 motor setups in DIY RC projects
• Compact 2PCS set ideal for small to mid-sized RC models including cars, boats, and custom-built platforms

2PCS RC Model 2CH Two-way Brushed ESC Speed Controller 2/3S 5Ax2 Bidirectional Electronic Regulator with Neutral Brake 6-14V DIY Item name: 2CH dual-way brushed ESC/electronic speed controller Voltage: 6-14V (Suitable for 2/3S lithium batteries, cannot be connected to 4S, reverse connection is prohibited) Single way current: 5A (continuous 3A without additional cooling) Single way peak current: 7A BEC output: 5V, max 1.5A, suitable for receivers/servos (Note: No additional power supply is allowed on the receiver.If additional power supply is required, such as connecting a flight control or another ESC with BEC, cut off the red line in the 3P wire of the ESC.) Board size: 24x23mm Weight: about 12g per piece Description: The mid-point of the remote control is fixed at PWM 1500us (+50 -50).The minimum range is 800-1100 and the maximum range is 1900-2200, automatically adapting.Signals outside 800-2200 are considered invalid and will lock the ESC.Power-on sequence includes a beep from the motor indicating power is applied.Starts at neutral point (throttle channel around 1500), confirmed by a beep from the motor when the ESC starts.Includes loss of protection.In case of interruption, the motor stops and requires returning the throttle to center to unlock.Features: Power failure protection: When supply voltage drops below 4V, the ESC restarts protection.After motor stops and voltage recovers, return throttle to center to hear unlocking sound.Overcurrent protection included, though repeated overcurrent may damage the unit.Not suitable for current motors such as 540.Overheat protection activates at 130 degrees.Mode description (mode switch removed; refer to advanced settings for changes): Mixing mode (default, throttle/steering mode): Use 2 or 3 channels for throttle (2 channels recommended for auto-centering), and 1 or 4 channels for differential steering.Throttle ratio 100%, steering ratio 100%, steering priority.Suitable for tanks and 4-wheel drive cars.Two-way independent: Functions as two separate ESCs.For tank simulation, connect white three-wire terminal to receiver throttle (channel 3), and yellow single-wire to receiver channel 2.Two-way synchronization: In mixing mode, leave yellow wire unconnected or connect it to receiver ground; both motors are controlled synchronously by throttle.Advanced Settings (Mixing, Neutral Brake, Initial Velocity, Linearity): Connect yellow wire to channel 1, white 3P wire to channel 2, and connect motor.Do not plug in yet.Using an American hand transmitter as example, operate right stick as follows and hold: Upper left Set neutral brake (Default: without) Right Set mixing (Default: mixing) Bottom left Set initial velocity (small, medium, large) (Default: medium) Bottom right Set linearity (small, medium, large) (Default: medium; larger linear value results in slower motor response but more realism) Power on ESC.After hearing a short falling tone, return stick to center.A long unlocking tone indicates successful setting.Notes on settings: Only one parameter can be changed per power cycle.For options with three choices, settings cycle progressively.For Japanese hand transmitters where right stick controls throttle on channel 3, insert white 3P wire into channel 3.For gun control adjustments, set neutral brake by pushing throttle to maximum and steering to far left, power on ESC, then return both to center.no channel reversal and rudder angle limits exceed 1850us upper and below 1150us lower.Package includes: 2 pieces x ESC
