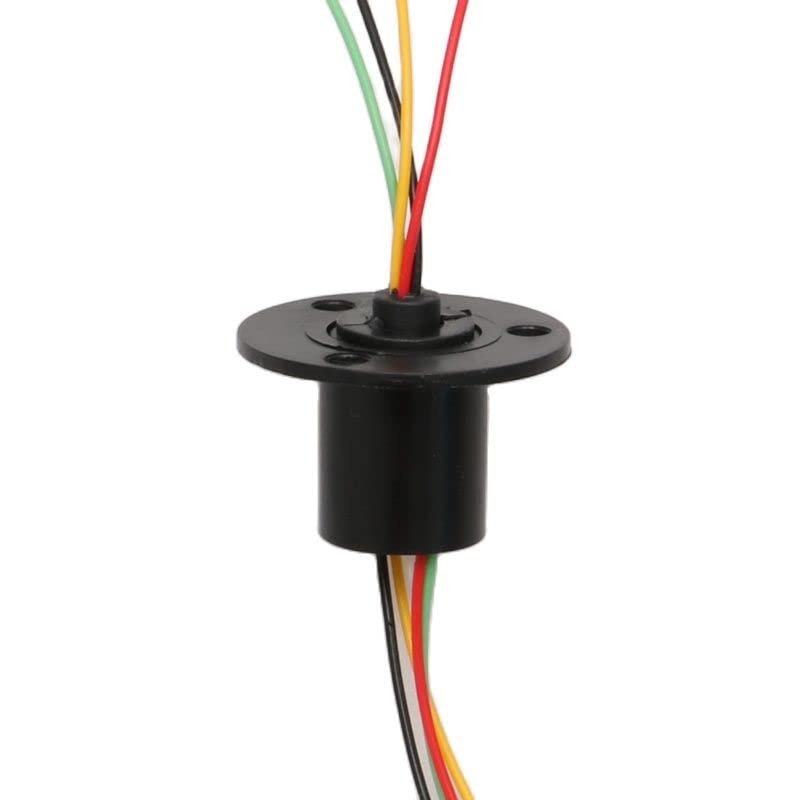

2/4/6/8/12/18 Channel Micro Rotate Slip Ring 2A Diameter 12.5mm for RC Excavator Model DIY PTZ Gimbal Electric Collector Rings(Dia.12.5mm 4CH 2A)

Description

• - Diameter: 12.5mm
• - Speed: up to 200rpm
• - Channel number: 2/4/6/8/12/18 Channels for option
• - Rated voltage: 220VAC/DC
• - Rated current: 2A/channel

Specifications:
- Diameter: 12.5mm
- Speed: up to 200rpm
- Channel number: 2/4/6/8/12/18 Channels for option
- Rated voltage: 220VAC/DC
- Rated current: 2A/channel
- Operating temperature: -20 ~ +60
- Contact material: Gold/Gold
- Wire length: standard 200mm
- Compressive strength: between the two channels500V 50Hz
- Insulation resistance: 500M/500VDC
- Dynamic resistance fluctuation value: minimum 10m
- Shell material: Engineering plastics
- Working life: 5 million rpm(depending on the working environment and speed)

Description:
- Wind power slip rings have good resistance to low temperature, high humidity, wind and sand, corrosion resistance, impact resistance, vibration resistance, stable performance and no maintenance. The service life can reach 10 million revolutions.
- The slip ring is responsible for the power of the entire system in the wind power generation system. The control signal and data transmission function is a very critical component in the entire wind power system. Its precision, reliability and working life directly affect the performance of the wind power generation system.

Package included:
1pcs x slip ring, number of channels for option
We offer OEM for orders of large quantity. Please feel f re-e to contact us for more info.
