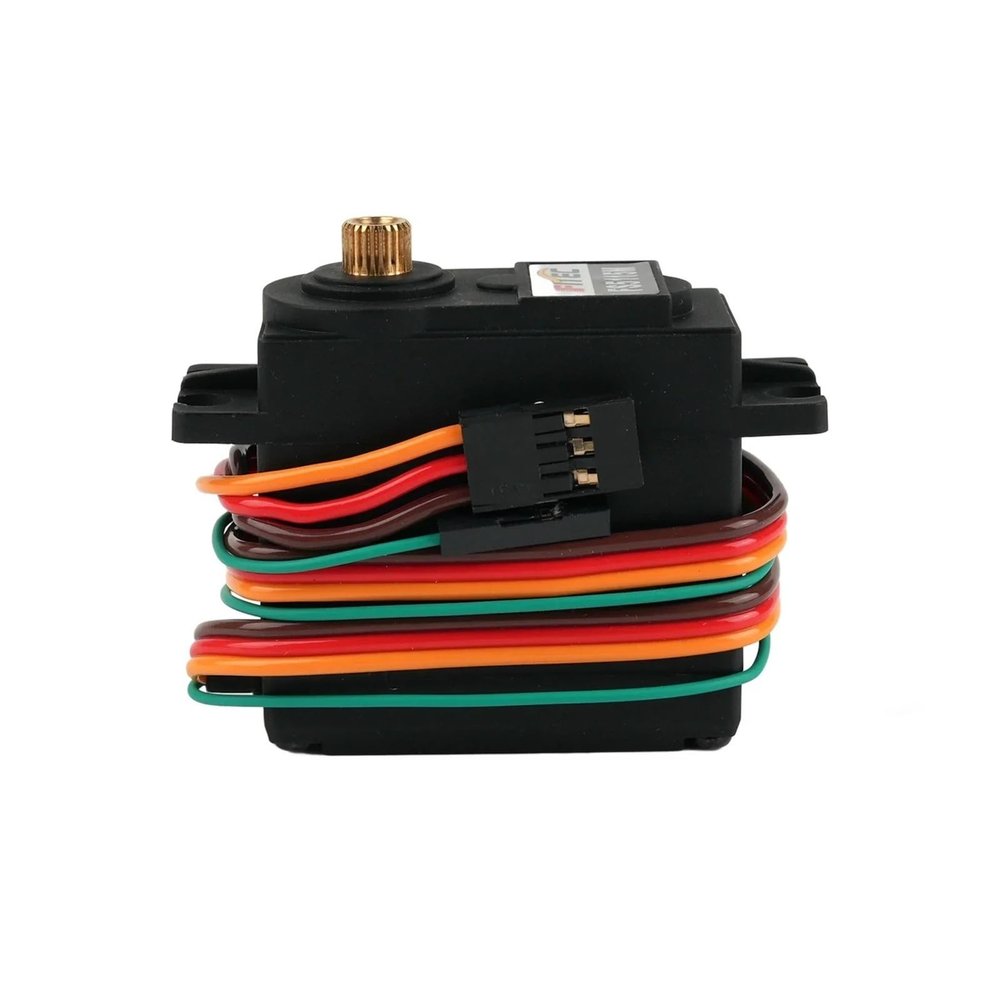

15.5kg Digital servo with Position FS5115M-FB 180 Degree Metal Gear Motor

Description

• Steering Gear

Steering Gear
Product number: 15.5kg/cm FS5115M-FB
Operating voltage range: 4-8.4V
Idle current (when stopped): 6mA@6V
No-load speed: 0.2 seconds/60@6V
Running current (no load): 220mA@6V
Peak stall torque: 15.5kg.cm@6V
Rated torque: 5.16kg.cm@6V
Stalled rotor current: 1.7A@6V

Angle: 180 (500-2500 seconds)
Limit angle: 200

Pulse width range: 500~2500usec
Stop position: 1500 seconds
Dead zone width: 4 seconds
Rotation direction: counterclockwise (1500-2000 seconds)
Dimensions: 40.1*20.1*38.9mm
Weight: 80g

Dimensions: 40.1mm x 20.1mm x 38.9mm
