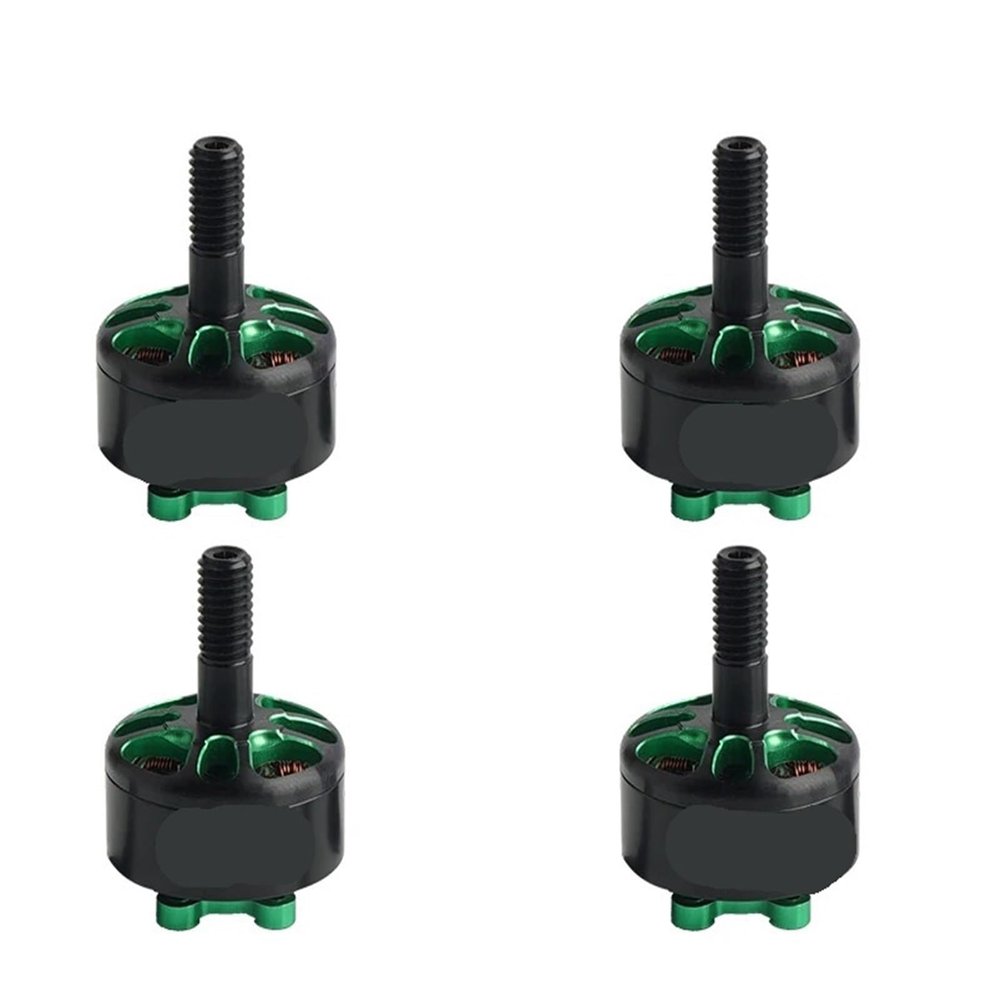

1/4PCS A1506 1506 3100KV 4300KV Brushless Mini Motor(4PCS 4300KV)

Description

• Servos

Servos
2. Arc magnet
3.7075-T6 aluminum bell
4. Two-color design
5.0.15mm silicon steel sheet
Weight: 15.5g (including cable)
Motor size: 18.0 x 27.2 mm
Shaft diameter: 1.5mm
Stator diameter: 1.5mm
Stator height: 6mm
Propeller mounting shaft diameter: M5
Motor mounting base: 12*12mm (M2*4)
Configuration: 9N12P
Motor cable: 26#AWG 115mm
KV value: 3100KV, 4300KV or customized KV
Recommendation: 3~4 inch propeller application
A1506-3100KV motor specifications
Maximum pulling force: 615g
Voltage: 22V (6S)
Recommended ESC: 10A~20A
Maximum power: 375W
Recommended props: 3-inch props
A1506-4300KV motor specifications
Maximum pulling force: 482g
Voltage: 15V (4S)
Recommended ESC: 10A~20A
Maximum power: 280W
Recommended props: 3-inch props
or not: No
Quantity: 1
Wheelbase: screw
Is it battery/power supply: No
Is it a charger/adapter: No
Does it include batteries: No
Dimensions: 18.0 x 27.2 mm
Model: A1506
