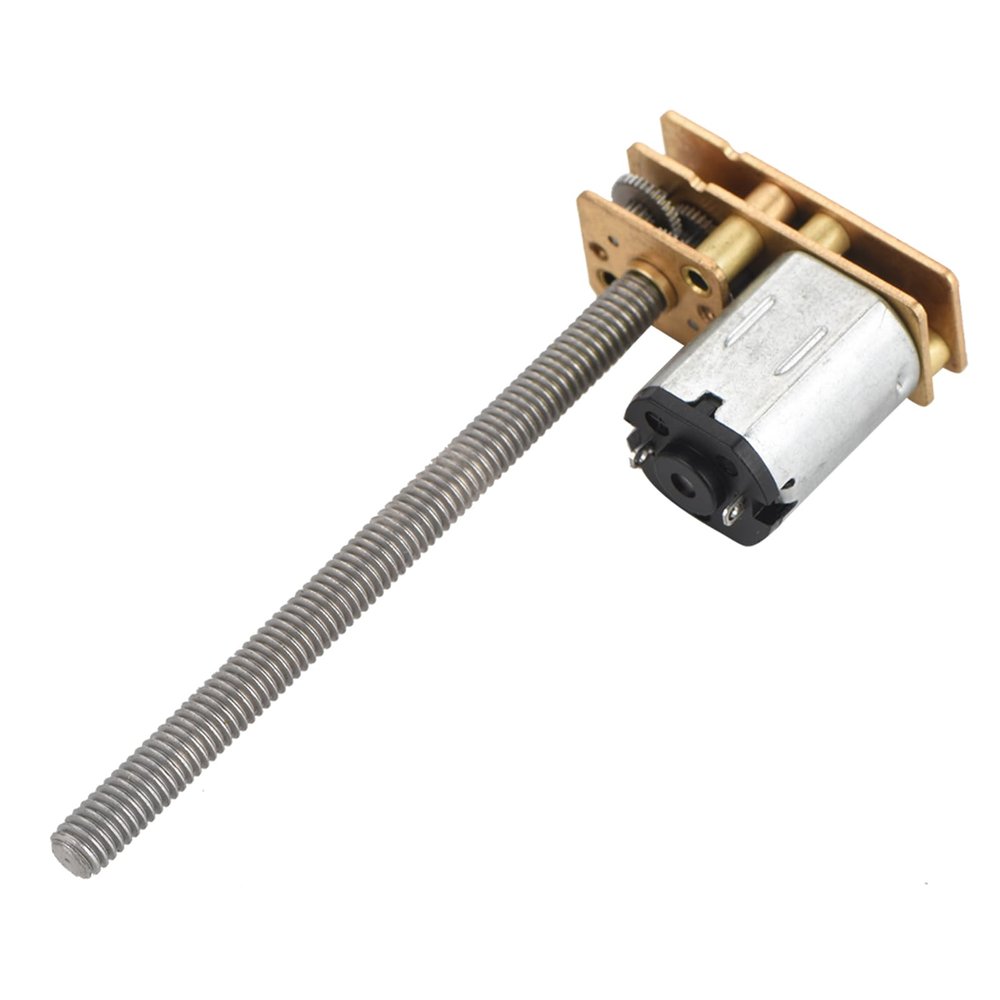

1024GA20 DC Gear Motor with M4 x 55mm Threaded Flip Shaft - 6V 60 RPM N20 Electronic Deceleration Motor Featuring Metal Gears and Pure Copper Wire Coil for Mechanical Arms and (12V 60RPM)

Description

• Performance Characteristics: This 1024GA20 N20 gear motor operates at 6V with a rated speed of 60 RPM and provides a large moment of force for low speed and low noise applications.
• Metal Gear Construction: The internal assembly utilizes metal gears to provide wear resisting properties and prevent tooth breakage to support reliable operation in mechanical environments.
• Threaded Output Shaft: This unit features an M4 x 55mm threaded flip shaft designed for secure attachment and linear motion in integrated mechanical assemblies and hardware.
• Copper Wire Coil: The motor is engineered with a pure copper wire coil to ensure low heat generation and minimal power loss during use for consistent electrical performance.
• Application Compatibility: This component is suitable for use in lifts, landing gear, mechanical arms, and electronic toys as a replacement for existing deceleration motors.

Features:
This DC motor features large moment of force, low speed, and low noise.
The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.
This electronic gear motor is good replacement for old or worn electronic deceleration motor, useful and practical.
Suitable for lifts, landing gear, mechanical arms ,electronic toys and many other devices.
This motor is adopted of pure copper wire coil, with low heat and low loss.

Specification:
Rated power: 2W
Optional type: 6V 30RPM, 6V 60RPM, 6V 100RPM, 6V 150RPM, 6V 200RPM, 6V 1000RPM, 12V 60RPM, 12V 100RPM, 12V 200RPM
3C rated voltage range: Tread type: M4
Output shaft length: 55mm / 2.2inch
Size: Approx. 6.5*2.5cm/2.6*1in
Weight: Approx. 18g/0.6oz

Voltage Gear Ratio No Load Load Torsion Stall
Speed Current Speed Current Torsion Current Torsion
6V 1:298 30RPM 20mA 23RPM 40mA 440gf.cm 1.1A 3.3kgf.cm
6V 1:298 60RPM 40mA 50RPM 40mA 560gf.cm 1.1A 3.6kgf.cm
6V 1:100 100RPM 30mA 83RPM 45mA 320gf.cm 1.1A 2.25kgf.cm
6V 1:100 150RPM 50mA 130RPM 45mA 260gf.cm 1.1A 2.50kgf.cm
6V 1:50 200RPM 50mA 180RPM 45mA 160gf.cm 1.1A 1.60kgf.cm
6V 1:10 1000RPM 30mA 830RPM 50mA 25gf.cm 1.1A 0.65kgf.cm
12V 1:298 60RPM 40mA 45RPM 50mA 720gf.cm 1.1A 4.6kgf.cm
12V 1:298 120RPM 60mA 100RPM 60mA 880gf.cm 1.1A 4.8kgf.cm
12V 1:100 200RPM 50mA 160RPM 60mA 550gf.cm 1.1A 3.5kgf.cm
Package List:
1 x Gear Motor

Note:
1. Please allow small size error due to manual measurement. Thanks for your understanding.2. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
