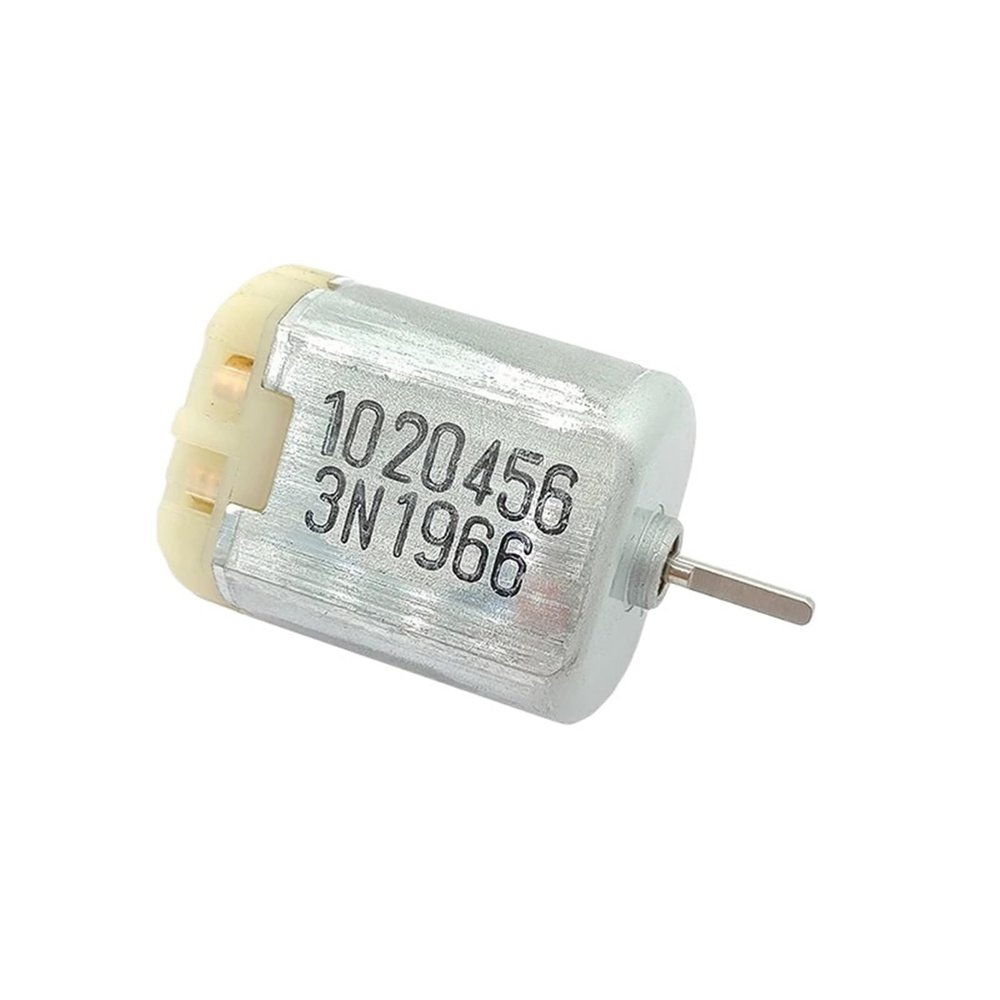

1020456 FC-280SC-20150 Mini 280 Flat Motor DC 12V 24mm Electric Motor D-Shaft for Car Door Lock Actuator Repair Engine 1Pcs

Description

• Motors

Motors
1020456 FC-280SC-20150 Mini 280 Flat Motor DC 12V 24mm Electric Motor D-Shaft for Car Door Lock Actuator Repair Engine 1Pcs
1.Model : 1020456 (this motor parameter close to FC-280SC-20150)
3.Motor size: 24mm*18.3mm*30.5mm
4.Output shaft diameter: 2mm (D shaft 1.5mm)
5.Output shaft length: 9.3mm
6.Weight: 40g
7.Rated voltage: DC 12V
8.No-load current: 110mA
9.No-load speed: 11800RPM
10.Suitable voltage: DC 8V-16V
11.Tips: The motor panel is not aligned with the holes. The conductive position of the motor is -in.
Package List:
Motor x 1PCS
<;18.65
Usage : Car
Model Number : Mini 280 Motor
Construction : Permanent Magnet
Type : Mini Motor
Protec Feature : Explosion-proof
Commutation : Brush
Efficiency : IE 1
Model number : 1020456
Motor size : 24mm*18.3mm*30.5mm
Output shaft diameter : 2mm (D shaft 1.5mm)
Rated voltage : DC 12V
